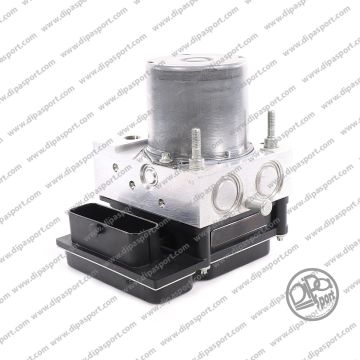

Bosch ABS Control Unit 8.1 Grande Punto
- DiPa Code:
- ABS1131EN
- OEM Code:
- 0265950769
- Cod.Cross:
- Condition:
- New
ABS Control Unit
Warnings
To be coded with original or equivalent tester
Typical Errors and Defects
Typical Defects:
One or more wheels do not brake, no brake fluid reaches the calipers
One or more wheels remain locked
The brake pedal sinks
No communication between ABS and diagnostic system, does not detect speed on the instrument panel
The pump motor operates continuously
Applications
FIAT
FIAT GRANDE PUNTO (199_)
| Model | Year of Production | Displacement | KW | HP | Cylinders | Fuel Type | Engine Code |
|---|---|---|---|---|---|---|---|
| GRANDE PUNTO (199_) | 2005-06-01 - 2015-12-01 | 1368 cc | 57 KW | 77 HP | 4 Cylinders | Gasoline | 350 A1.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - | 1242 cc | 48 KW | 65 HP | 4 Cylinders | Gasoline | 199 A4.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - | 1910 cc | 88 KW | 120 HP | 4 Cylinders | Diesel | 939 A1.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - | 1910 cc | 96 KW | 130 HP | 4 Cylinders | Diesel | 199 A5.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - 2007-07-01 | 1368 cc | 55 KW | 75 HP | 4 Cylinders | Gasoline | 199 A7.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - 2010-12-01 | 1248 cc | 66 KW | 90 HP | 4 Cylinders | Diesel | 199 A3.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - 2011-08-01 | 1368 cc | 70 KW | 95 HP | 4 Cylinders | Gasoline | 199 A6.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - 2013-06-01 | 1248 cc | 55 KW | 75 HP | 4 Cylinders | Diesel | 199 A9.000 |
| GRANDE PUNTO (199_) | 2005-10-01 - 2013-06-01 | 1248 cc | 55 KW | 75 HP | 4 Cylinders | Diesel | 199 A2.000 |
| GRANDE PUNTO (199_) | 2006-06-01 - 2009-12-01 | 1910 cc | 85 KW | 116 HP | 4 Cylinders | Diesel | 939 A7.000 |
| GRANDE PUNTO (199_) | 2007-08-01 - 2010-06-01 | 1796 cc | 85 KW | 116 HP | 4 Cylinders | Benzina/Etanolo | J2 |
| GRANDE PUNTO (199_) | 2007-08-01 - 2010-06-01 | 1796 cc | 85 KW | 116 HP | 4 Cylinders | Benzina/Etanolo | Y2 |
| GRANDE PUNTO (199_) | 2007-08-01 - 2012-07-01 | 1368 cc | 63 KW | 86 HP | 4 Cylinders | Benzina/Etanolo | 310 A2.011 |
| GRANDE PUNTO (199_) | 2007-09-01 - | 1368 cc | 88 KW | 120 HP | 4 Cylinders | Gasoline | 198 A4.000 |
| GRANDE PUNTO (199_) | 2007-09-01 - 2012-07-01 | 1368 cc | 112 KW | 152 HP | 4 Cylinders | Gasoline | 198 A1.000 |
| GRANDE PUNTO (199_) | 2008-06-01 - 2012-12-01 | 1242 cc | 51 KW | 69 HP | 4 Cylinders | Benzina/Gasauto (GPL) | 199 A4.000 |
| GRANDE PUNTO (199_) | 2008-07-01 - | 1368 cc | 57 KW | 78 HP | 4 Cylinders | Benzina/Gas naturale (GNC) | 350 A1.000 |
| GRANDE PUNTO (199_) | 2008-07-01 - | 1598 cc | 88 KW | 120 HP | 4 Cylinders | Diesel | 955 A3.000 |
| GRANDE PUNTO (199_) | 2008-07-01 - | 1248 cc | 51 KW | 69 HP | 4 Cylinders | Diesel | 199 B2.000 |
| GRANDE PUNTO (199_) | 2008-12-01 - | 1368 cc | 57 KW | 78 HP | 4 Cylinders | Benzina/Gasauto (GPL) | 350 A1.000 |
| GRANDE PUNTO (199_) | 2009-06-01 - 2014-07-01 | 1248 cc | 56 KW | 76 HP | 4 Cylinders | Diesel | 199 A2.000 |
| GRANDE PUNTO (199_) | 2009-06-01 - 2014-07-01 | 1172 cc | 50 KW | 68 HP | 4 Cylinders | Gasoline | 310 A6.600 |
| GRANDE PUNTO (199_) | 2009-06-01 - 2014-07-01 | 1368 cc | 66 KW | 90 HP | 4 Cylinders | Gasoline | 323 B6.600 |
| GRANDE PUNTO (199_) | 2010-04-01 - | 1248 cc | 62 KW | 84 HP | 4 Cylinders | Diesel | 199 B4.000 |
| GRANDE PUNTO (199_) | 2010-04-01 - | 1248 cc | 62 KW | 84 HP | 4 Cylinders | Diesel | 223 A9.000 |
| GRANDE PUNTO (199_) | 2010-07-01 - 2012-07-01 | 1747 cc | 96 KW | 131 HP | 4 Cylinders | Gasoline | 370 A0.011 |
| GRANDE PUNTO (199_) | 2010-09-01 - | 1242 cc | 51 KW | 69 HP | 4 Cylinders | Gasoline | 169 A4.000 |
| GRANDE PUNTO (199_) | 2011-02-01 - | 1598 cc | 85 KW | 117 HP | 4 Cylinders | Gasoline | 310 A5.011 |
| GRANDE PUNTO (199_) | 2012-01-01 - 2013-01-01 | 1248 cc | 68 KW | 92 HP | 4 Cylinders | Diesel | 199 A2.000 |
FIAT GRANDE PUNTO Van (199_)
| Model | Year of Production | Displacement | KW | HP | Cylinders | Fuel Type | Engine Code |
|---|---|---|---|---|---|---|---|
| GRANDE PUNTO Van (199_) | 2006-02-01 - 2010-08-01 | 1248 cc | 66 KW | 90 HP | 4 Cylinders | Diesel | 199 A3.000 |
| GRANDE PUNTO Van (199_) | 2006-02-01 - 2013-06-01 | 1248 cc | 55 KW | 75 HP | 4 Cylinders | Diesel | 199 A2.000 |
| GRANDE PUNTO Van (199_) | 2006-02-01 - 2013-06-01 | 1368 cc | 57 KW | 77 HP | 4 Cylinders | Gasoline | 350 A1.000 |
| GRANDE PUNTO Van (199_) | 2009-03-01 - 2012-12-01 | 1368 cc | 57 KW | 77 HP | 4 Cylinders | Benzina/Gasauto (GPL) | 350 A1.000 |
| GRANDE PUNTO Van (199_) | 2009-03-01 - 2012-12-01 | 1368 cc | 57 KW | 77 HP | 4 Cylinders | Benzina/Gas naturale (GNC) | 350 A1.000 |
