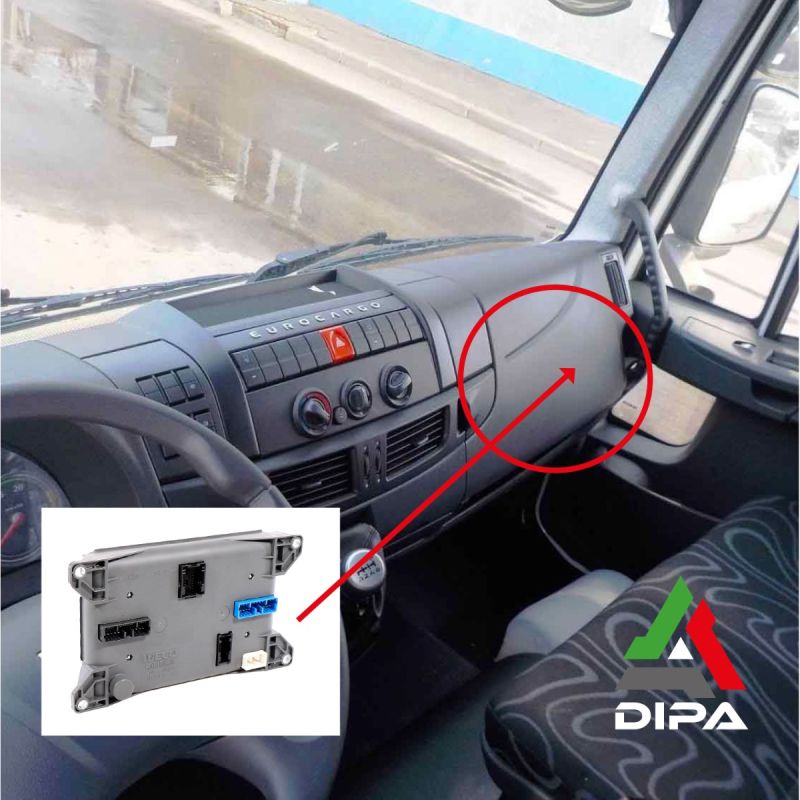

Body Computer Bcm Truck Iveco Eurocargo

DiPa Code:
BODYBCM001N
OEM Code:
504041124
Brand:
ORIGINALE
Condition:
New
Body Computer Bcm
To view availability and prices, login or register
Are you a private individual? Find out how we can help you
Warnings
WARNING: The new unit must be programmed at our headquarters, transferring the software from the original part, which must therefore be sent to us.
Typical Errors and Defects

Typical Defects:
Malfunctioning lights (position - daytime - low beam - high beam - stop - license plate - reverse)
Instrument cluster does not turn on
Does not enter diagnostics / No communication with body control unit
Malfunctioning turn indicators

Applications
CHEVROLET
CHEVROLET ASTRO Extended Cargo Van
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ASTRO Extended Cargo Van 1989-09-01 - 1990-12-01 2471 cc 72 KW 98 HP 4 Cylinders Gasoline LN8
ASTRO Extended Cargo Van 1994-09-01 - 2005-12-01 4300 cc 142 KW 193 HP 6 Cylinders Gasoline L35(262CUL6)
CHEVROLET ASTRO Extended Passenger Van
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ASTRO Extended Passenger Van 1989-09-01 - 1990-12-01 2471 cc 72 KW 98 HP 4 Cylinders Gasoline LN8
ASTRO Extended Passenger Van 1994-09-01 - 2005-12-01 4300 cc 142 KW 193 HP 6 Cylinders Gasoline L35(262CUL6)
CHEVROLET ASTRO Standard Cargo Van
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ASTRO Standard Cargo Van 1984-09-01 - 1986-12-01 2471 cc 69 KW 94 HP 4 Cylinders Gasoline LN8
ASTRO Standard Cargo Van 1989-09-01 - 1990-12-01 2471 cc 72 KW 98 HP 4 Cylinders Gasoline LN8
CHEVROLET ASTRO Standard Passenger Van
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ASTRO Standard Passenger Van 1984-09-01 - 1986-12-01 2471 cc 69 KW 94 HP 4 Cylinders Gasoline LN8
HYUNDAI
HYUNDAI H-1 / STAREX Autobus (A1)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
H-1 / STAREX Autobus (A1), H-1 Autobus (A1), H200 Autobus (A1), SATELLITE Autobus (A1), STAREX Autobus (A1), STAREX I Autobus (A1) 2002-12-01 - 2004-04-01 2497 cc 103 KW 140 HP 4 Cylinders Diesel D4CB
IVECO
IVECO EUROCARGO IV
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
EUROCARGO IV 2013-05-01 - 5883 cc 160 KW 218 HP Cylinders
EUROCARGO IV 2013-05-01 - 5883 cc 134 KW 182 HP Cylinders
EUROCARGO IV 2013-05-01 - 5883 cc 202 KW 275 HP Cylinders
EUROCARGO IV 2013-05-01 - 5883 cc 176 KW 239 HP Cylinders
EUROCARGO IV 2013-11-01 - 4485 cc 118 KW 160 HP Cylinders
EUROCARGO IV 2013-11-01 - 4485 cc 152 KW 207 HP Cylinders
EUROCARGO IV 2013-11-01 - 4485 cc 137 KW 186 HP Cylinders
EUROCARGO IV 2013-11-01 - 6728 cc 185 KW 252 HP Cylinders
EUROCARGO IV 2013-11-01 - 6728 cc 162 KW 220 HP Cylinders
EUROCARGO IV 2013-11-01 - 6728 cc 235 KW 320 HP Cylinders
EUROCARGO IV 2013-11-01 - 6728 cc 206 KW 280 HP Cylinders
IVECO TECTOR I
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
TECTOR I 2008-12-01 - 2012-04-01 5883 cc 184 KW 250 HP Cylinders
IVECO TECTOR II
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
TECTOR II 2011-12-01 - 5883 cc 176 KW 239 HP Cylinders
TECTOR II 2012-01-01 - 5883 cc 206 KW 280 HP Cylinders
TECTOR II 2012-01-01 - 4485 cc 150 KW 204 HP Cylinders
TECTOR II 2012-01-01 - 5883 cc 160 KW 218 HP Cylinders
TECTOR II 2012-05-01 - 5883 cc 206 KW 280 HP Cylinders
TECTOR II 2012-09-01 - 5883 cc 206 KW 280 HP Cylinders
TECTOR II 2012-09-01 - 2019-08-01 5883 cc 160 KW 218 HP Cylinders
TECTOR II 2012-09-01 - 2020-12-01 5883 cc 205 KW 279 HP Cylinders
TECTOR II 2015-07-01 - 5883 cc 206 KW 280 HP Cylinders
TECTOR II 2016-01-01 - 6728 cc 220 KW 299 HP Cylinders
TECTOR II 2016-01-01 - 4485 cc 154 KW 209 HP Cylinders
TECTOR II 2016-01-01 - 6728 cc 224 KW 305 HP Cylinders
TECTOR II 2016-04-01 - 2019-12-01 5883 cc 206 KW 280 HP Cylinders
TECTOR II 2016-05-01 - 6728 cc 160 KW 218 HP Cylinders
Techinical Info

The code OE 504041124 is associated with the Body Computer Module (BCM) for IVECO EuroCargo/Tector. It is a body control unit that manages and distributes commands and outputs (lights, wipers, indicators, etc.) and communicates on the network with the vehicle's other modules.

Technical specifications

  • Type: Body Control Module (BCM)
  • Typical operating voltage: 24 V

DIPA can intervene to overhaul these components thanks to its experience and expertise.

Functions

  • Management of outputs and onboard services typical of a BCM on a commercial vehicle: lights (low/high beam, stop, various lights depending on the fitment); turn indicators; wipers (depending on configuration); management of certain warnings/instrumentation (e.g., indications and permissions that pass through the body node)
  • Network and communication management: when the BCM is faulty it can generate warnings or trigger emergency logic.

Model applications

  • IVECO EuroCargo/Tector

Common faults

  • Light malfunction (position - daytime - low beam - high beam - stop - license plate - reverse)
  • Instrument cluster does not turn on
  • Fails to enter diagnostics / No communication with body control unit
  • Turn indicator malfunction

Final conclusions

The code IVECO OE 504041124 identifies the Body Computer (BCM) for EuroCargo/Tector, typically 24 V. It is a central module for lights and body services.

DIPA has a wide range of spare parts dedicated to the world of trucks, construction vehicles and industrial equipment. Not only that: it offers reconditioned components that perform like new, allowing savings on replacements while contributing to environmental protection through the circular economy. If the spare part you need is not available, don’t worry: DIPA can recondition your part on demand, restoring full functionality and safety in a short time.
