CPC 5 Module Mercedes Actros MP5

DiPa Code:
BODYCPC016R
OEM Code:
0281021155
Brand:
BOSCH
Condition:
Remanufactured
Bosch Engine and Transmission Control Unit Overhaul for Industrial Vehicles
To view availability and prices, login or register
Are you a private individual? Find out how we can help you
Details

The Mercedes-Benz CPC5 control unit A0554464302 is the heart of the powertrain for Actros MP5 series 963/964. It coordinates engine, transmission and aftertreatment via the CAN/J1939 network, managing accelerator pedal signals, vehicle sensors and driver assistance functions. It integrates central diagnostics, protection strategies and a gateway between subsystems to optimize performance and safety.

Typical Errors and Defects

Typical Faults:
The control unit does not communicate with the diagnostic tool
Internal fault causing errors on the sensors and throttle
The control unit does not work at all

Applications
CITROËN
CITROËN JUMPER I Autobus (230P)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
JUMPER I Autobus (230P), RELAY I Autobus (230P) 2000-09-01 - 2002-04-01 2798 cc 94 KW 128 HP 4 Cylinders Diesel 8140.43S
CITROËN JUMPER I Furgone (230L)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
JUMPER I Furgone (230L), RELAY I Furgone (230L) 2000-09-01 - 2002-04-01 2798 cc 94 KW 128 HP 4 Cylinders Diesel 8140.43S
CITROËN JUMPER I Pianale piatto/Telaio (230)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
JUMPER I Pianale piatto/Telaio (230), RELAY I Pianale piatto/Telaio (230) 2000-09-01 - 2002-04-01 2798 cc 94 KW 128 HP 4 Cylinders Diesel 8140.43S
DACIA
DACIA 1307 Pianale piatto/Telaio
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
1307 Pianale piatto/Telaio 1984-06-01 - 1994-11-01 1397 cc 48 KW 65 HP 4 Cylinders Gasoline
DACIA 1309 Pianale piatto/Telaio
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
1309 Pianale piatto/Telaio 1990-09-01 - 1994-11-01 1397 cc 48 KW 65 HP 4 Cylinders Gasoline 847
FIAT
FIAT DUCATO Autobus (230_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
DUCATO Autobus (230_) 2000-11-01 - 2002-04-01 2798 cc 94 KW 128 HP 4 Cylinders Diesel 8140.43S
FIAT DUCATO Furgone (230_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
DUCATO Furgone (230_) 2000-11-01 - 2002-04-01 2798 cc 94 KW 128 HP 4 Cylinders Diesel 8140.43S
FIAT DUCATO Pianale piatto/Telaio (230_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
DUCATO Pianale piatto/Telaio (230_) 2000-11-01 - 2002-04-01 2798 cc 94 KW 128 HP 4 Cylinders Diesel 8140.43S
FIAT SCUDO Autobus (220_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
SCUDO Autobus (220_) 2000-06-01 - 2006-12-01 1997 cc 100 KW 136 HP 4 Cylinders Gasoline RFN (EW10J4)
MERCEDES-BENZ
MERCEDES-BENZ ACTROS MP4 / MP5
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ACTROS MP4 / MP5 2011-07-01 - 12809 cc 310 KW 422 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 10677 cc 315 KW 428 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 12809 cc 360 KW 490 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 12809 cc 330 KW 449 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 11967 cc 375 KW 510 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 11946 cc 320 KW 435 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 12809 cc 310 KW 421 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 15569 cc 460 KW 625 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 15569 cc 380 KW 517 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 15569 cc 425 KW 578 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 12809 cc 350 KW 476 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 12809 cc 375 KW 510 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 7698 cc 175 KW 238 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 10677 cc 240 KW 326 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 7698 cc 200 KW 272 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 7698 cc 220 KW 299 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 10677 cc 290 KW 394 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 10677 cc 265 KW 360 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 7698 cc 235 KW 320 HP Cylinders
ACTROS MP4 / MP5 2011-07-01 - 7698 cc 260 KW 354 HP Cylinders
ACTROS MP4 / MP5 2012-01-01 - 12809 cc 335 KW 456 HP Cylinders
ACTROS MP4 / MP5 2012-01-01 - 12816 cc 336 KW 457 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 12809 cc 350 KW 476 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 10677 cc 265 KW 360 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 7698 cc 260 KW 354 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 15569 cc 380 KW 517 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 15569 cc 425 KW 578 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 15569 cc 460 KW 625 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 7698 cc 200 KW 272 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 12809 cc 330 KW 449 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 10677 cc 240 KW 326 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 10677 cc 315 KW 428 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 10677 cc 290 KW 394 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 7698 cc 235 KW 320 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 7698 cc 220 KW 299 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 12809 cc 375 KW 510 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 12809 cc 310 KW 421 HP Cylinders
ACTROS MP4 / MP5 2013-05-01 - 7698 cc 175 KW 238 HP Cylinders
ACTROS MP4 / MP5 2013-12-01 - 15569 cc 460 KW 625 HP Cylinders
ACTROS MP4 / MP5 2013-12-01 - 15569 cc 425 KW 578 HP Cylinders
ACTROS MP4 / MP5 2013-12-01 - 15569 cc 380 KW 517 HP Cylinders
ACTROS MP4 / MP5 2014-01-01 - 15569 cc 380 KW 517 HP Cylinders
ACTROS MP4 / MP5 2014-01-01 - 15569 cc 425 KW 578 HP Cylinders
ACTROS MP4 / MP5 2014-01-01 - 15569 cc 460 KW 626 HP Cylinders
ACTROS MP4 / MP5 2014-01-01 - 15928 cc 440 KW 598 HP Cylinders
ACTROS MP4 / MP5 2015-07-01 - 10677 cc 335 KW 455 HP Cylinders
ACTROS MP4 / MP5 2015-07-01 - 12809 cc 390 KW 530 HP Cylinders
ACTROS MP4 / MP5 2017-04-01 - 12816 cc 375 KW 510 HP Cylinders
ACTROS MP4 / MP5 2019-01-01 - 12809 cc 390 KW 530 HP Cylinders
ACTROS MP4 / MP5 2019-01-01 - 7698 cc 222 KW 302 HP Cylinders
ACTROS MP4 / MP5 2019-01-01 - 2019-12-01 12816 cc 335 KW 455 HP Cylinders
ACTROS MP4 / MP5 2019-04-01 - 12809 cc 335 KW 456 HP Cylinders
ACTROS MP4 / MP5 2021-10-01 - 0 cc 400 KW 544 HP Cylinders
PEUGEOT
PEUGEOT BOXER Furgone (230L)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
BOXER FURGON Furgone (230L), BOXER Furgone (230L) 2001-08-01 - 2002-04-01 1997 cc 62 KW 84 HP 4 Cylinders Diesel RHV (DW10TD)
BOXER FURGON Furgone (230L), BOXER Furgone (230L) 2001-08-01 - 2002-04-01 1997 cc 62 KW 84 HP 4 Cylinders Diesel RHV (DW10UTD)
PEUGEOT PARTNER Cassone/Limousine spaziosa (5_, G_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
PARTNER Cassone/Limousine spaziosa (5_, G_), PARTNER FURGON Cassone/Limousine spaziosa (5_, G_), PARTNER Van (5_, G_), RANCH Cassone/Limousine spaziosa (5_, G_) 2000-04-01 - 2008-07-01 1997 cc 66 KW 90 HP 4 Cylinders Diesel RHY (DW10TD)
VAUXHALL
VAUXHALL ASTRAVAN Mk V (H) Furgone/familiare (A04)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ASTRAVAN Mk V (H) Furgone/familiare (A04) 2011-06-01 - 2013-12-01 1686 cc 81 KW 110 HP 4 Cylinders Diesel A 17 DTJ
ASTRAVAN Mk V (H) Furgone/familiare (A04) 2011-06-01 - 2013-12-01 1686 cc 81 KW 110 HP 4 Cylinders Diesel Z 17 DTJ
ASTRAVAN Mk V (H) Furgone/familiare (A04) 2011-11-01 - 1686 cc 92 KW 125 HP 4 Cylinders Diesel Z 17 DTR
ASTRAVAN Mk V (H) Furgone/familiare (A04) 2011-11-01 - 1686 cc 92 KW 125 HP 4 Cylinders Diesel A 17 DTR
VAUXHALL CORSAVAN Mk II (C) Furgone/hatchback (X01)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
CORSAVAN Mk II (C) Furgone/hatchback (X01) 2000-09-01 - 2006-06-01 1199 cc 55 KW 75 HP 4 Cylinders Gasoline Z 12 XE
CORSAVAN Mk II (C) Furgone/hatchback (X01) 2000-09-01 - 2006-06-01 1686 cc 48 KW 65 HP 4 Cylinders Diesel Y 17 DTL
CORSAVAN Mk II (C) Furgone/hatchback (X01) 2000-09-01 - 2006-06-01 1686 cc 55 KW 75 HP 4 Cylinders Diesel Y 17 DT
VW
VW LT 28-35 II Autobus (2DB, 2DE, 2DK)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
LT 28-35 II Autobus (2DB, 2DE, 2DK), LT Mk II Autobus (2DB, 2DE, 2DK) 2001-05-01 - 2006-07-01 2461 cc 70 KW 95 HP 5 Cylinders Diesel BBF
LT 28-35 II Autobus (2DB, 2DE, 2DK), LT Mk II Autobus (2DB, 2DE, 2DK) 2001-05-01 - 2006-07-01 2461 cc 61 KW 83 HP 5 Cylinders Diesel BBE
VW LT 28-46 II Furgone (2DA, 2DD, 2DH)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
LT 28-46 II Furgone (2DA, 2DD, 2DH), LT Mk II Furgone (2DA, 2DD, 2DH) 2001-05-01 - 2006-07-01 2461 cc 70 KW 95 HP 5 Cylinders Diesel BBF
LT 28-46 II Furgone (2DA, 2DD, 2DH), LT Mk II Furgone (2DA, 2DD, 2DH) 2001-05-01 - 2006-07-01 2461 cc 61 KW 83 HP 5 Cylinders Diesel BBE
VW LT 28-46 II Pianale piatto/Telaio (2DC, 2DF, 2DG, 2DL, 2DM)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
LT 28-46 II Pianale piatto/Telaio (2DC, 2DF, 2DG, 2DL, 2DM), LT Mk II Pianale piatto/Telaio (2DC, 2DF, 2DG, 2DL, 2DM) 2001-05-01 - 2006-07-01 2461 cc 70 KW 95 HP 5 Cylinders Diesel BBF
LT 28-46 II Pianale piatto/Telaio (2DC, 2DF, 2DG, 2DL, 2DM), LT Mk II Pianale piatto/Telaio (2DC, 2DF, 2DG, 2DL, 2DM) 2001-05-01 - 2006-07-01 2461 cc 61 KW 83 HP 5 Cylinders Diesel BBE
Techinical Info

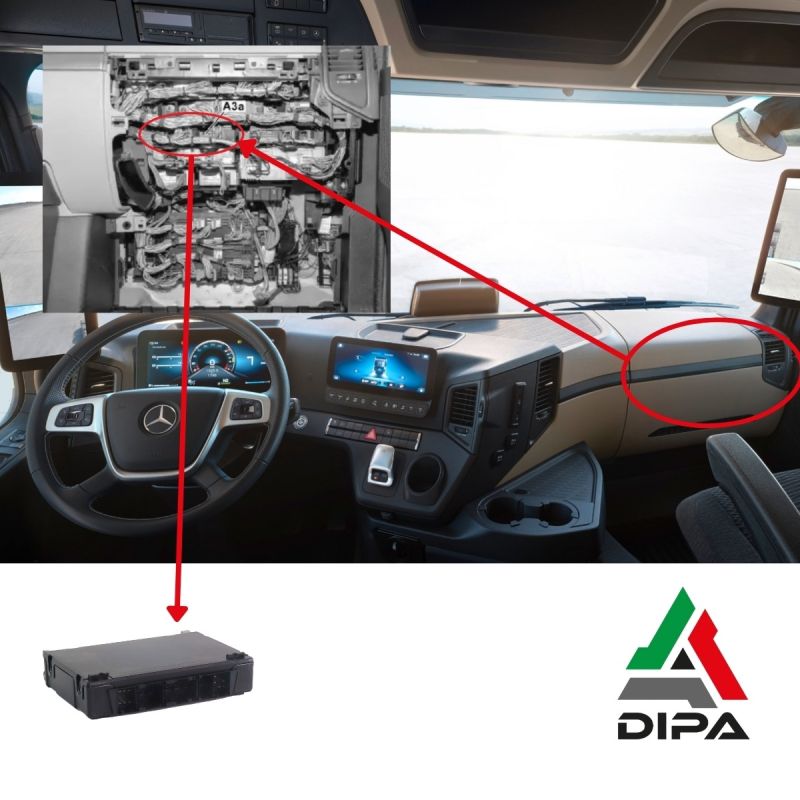

The CPC5 (Central Powertrain Controller) is the brain of the powertrain fitted to the latest-generation Mercedes Actros (series 963/964). It coordinates the main drive systems (engine, gearbox, aftertreatment) over the CAN/J1939 network, manages accelerator pedal signals and driving/assistance functions, and provides the central interface between sensors and subsystem control units. The unit with OE code A 0554464302 identifies a variant of the CPC5 family associated with more recent Actros platforms.

Technical specifications

  • Family: CPC5 (Drive/Powertrain Control)
  • Network: CAN/J1939 multi-bus, gateway between engine ECU, gearbox and aftertreatment
  • Connectivity: multiple connectors (including X3, internal shared sensor lines within the module)
  • Supply voltage: 12/24 V (commercial vehicle architecture)
  • Sealed housing, protection rating suitable for cab compartment/engine tunnel environment
  • Electronics manufacturer: Bosch platform

DIPA can intervene to overhaul these components thanks to its experience and expertise.

Functions

  • Coordination of engine torque and safety limits (torque, speed, cruise, PTO)
  • Management of accelerator pedal signals (redundancy and plausibility)
  • Supervision of automatic/automated gearboxes and aftertreatment (data exchange with MCM/ACM)
  • Central diagnostic functions and CAN message routing (gateway)
  • Interface for vehicle sensors (speed, ambient air temperature, common sensor inputs)
  • Emergency strategies in case of faults to preserve safety and components

Model applications

  • Mercedes-Benz Actros MP5 (platform 963/964)

Common faults

  • The control unit does not communicate with the diagnostic tool
  • Internal fault that generates errors on sensors and the accelerator
  • The control unit is completely inoperative

Final conclusions

The CPC5 (OE A0554464302) is a fundamental powertrain control unit for the Mercedes Actros.

DIPA has a wide range of spare parts dedicated to the truck sector, construction vehicles and industrial equipment. Not only that: it offers remanufactured components with like-new performance, which allow cost savings on replacement while contributing to environmental protection through the circular economy. If the spare part you need is not available, don't worry: DIPA can overhaul your part “on demand”, restoring full functionality and safety in a short time.
