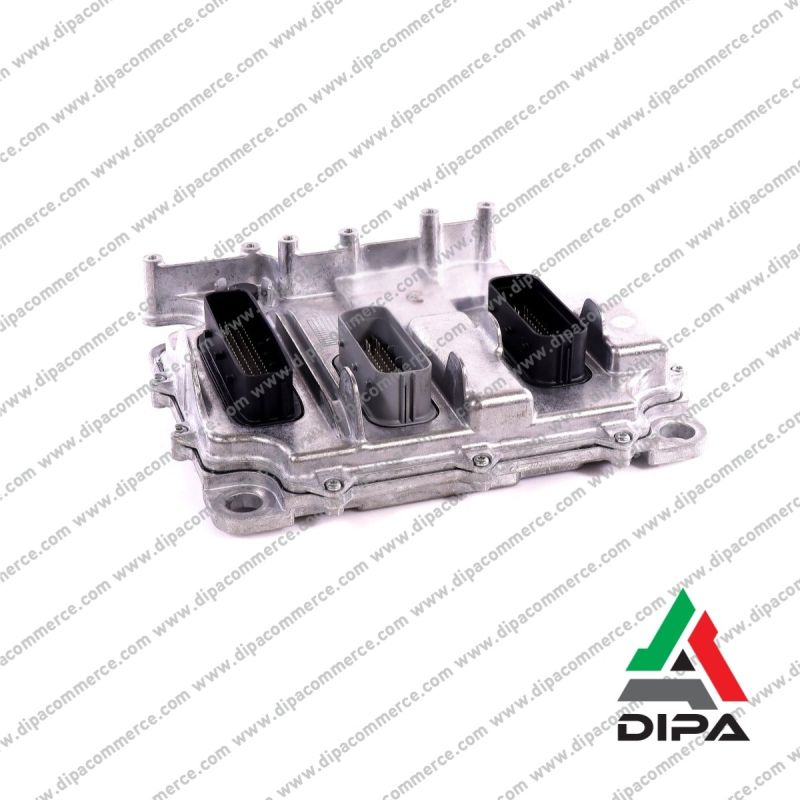

Revision of Delphi ECU DAF Engine Mx13

DiPa Code:
EDDLP006R
OEM Code:
2298832
Brand:
DIPA SPORT
Condition:
Remanufactured
Engine Control Unit
To view availability and prices, login or register
Are you a private individual? Find out how we can help you
Typical Errors and Defects

Typical Defects:
The vehicle shuts off when hot but sometimes restarts when cold
The vehicle never starts
The control unit never enters diagnostics

Applications
CITROËN
CITROËN JUMPER I Furgone (230L)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
JUMPER I Furgone (230L), RELAY I Furgone (230L) 1996-10-01 - 2002-01-01 1998 cc 80 KW 109 HP 4 Cylinders Gasoline RFW (XU10J2U)
DAF
DAF CF
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
CF 2013-05-01 - 12903 cc 303 KW 412 HP Cylinders
CF 2013-05-01 - 12903 cc 340 KW 462 HP Cylinders
CF 2013-05-01 - 12903 cc 375 KW 510 HP Cylinders
CF 2015-12-01 - 12903 cc 375 KW 510 HP Cylinders
CF 2015-12-01 - 12903 cc 303 KW 412 HP Cylinders
CF 2015-12-01 - 12903 cc 340 KW 462 HP Cylinders
CF 2017-05-01 - 12903 cc 355 KW 483 HP Cylinders
CF 2017-05-01 - 12903 cc 390 KW 530 HP Cylinders
CF 2017-05-01 - 12903 cc 315 KW 428 HP Cylinders
CF 2017-10-01 - 12903 cc 315 KW 428 HP Cylinders
DAF XF
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
XF 2012-10-01 - 12903 cc 340 KW 462 HP Cylinders
XF 2012-10-01 - 12903 cc 303 KW 412 HP Cylinders
XF 2012-10-01 - 12903 cc 375 KW 510 HP Cylinders
XF 2012-12-01 - 12903 cc 375 KW 510 HP Cylinders
XF 2015-06-01 - 12903 cc 340 KW 462 HP Cylinders
XF 2015-06-01 - 12903 cc 375 KW 510 HP Cylinders
XF 2017-05-01 - 12903 cc 390 KW 530 HP Cylinders
XF 2017-05-01 - 12903 cc 355 KW 483 HP Cylinders
XF 2017-05-01 - 12903 cc 315 KW 428 HP Cylinders
FIAT
FIAT DOBLO Cargo (263_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
DOBLO Cargo (263_) 2011-10-01 - 2023-12-01 1368 cc 88 KW 120 HP 4 Cylinders Gasoline 198 A4.000
FIAT DUCATO Autobus (244_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
DUCATO Autobus (244_) 2002-11-01 - 2006-07-01 1998 cc 81 KW 110 HP 4 Cylinders Benzina/Gas naturale (GNC) RFL
FORD
FORD HUSKY Furgone
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
HUSKY Furgone 1985-05-01 - 1998-01-01 1997 cc 78 KW 106 HP 4 Cylinders Gasoline 4G63
FORD TRANSIT Furgone (T_ _)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
TRANSIT Furgone (T_ _), TRANSIT Van (T_ _) 1985-10-01 - 1991-03-01 1993 cc 60 KW 82 HP 4 Cylinders Gasoline N6TS
FORD ASIA & OCEANIA
FORD ASIA & OCEANIA ECONOVAN Furgone
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
ECONOVAN Furgone, SPECTRON Furgone 1997-06-01 - 1998 cc 71 KW 97 HP 4 Cylinders Gasoline FEY9
ECONOVAN Furgone, SPECTRON Furgone 1999-10-01 - 1998 cc 63 KW 86 HP 4 Cylinders Diesel RF21
ECONOVAN Furgone, SPECTRON Furgone 1999-10-01 - 1998 cc 63 KW 86 HP 4 Cylinders Diesel FR
PEUGEOT
PEUGEOT J5 Furgone (290L)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
J5 Furgone (290L) 1990-09-01 - 1994-01-01 1796 cc 51 KW 69 HP 4 Cylinders Gasoline 169B (XM7T)
J5 Furgone (290L) 1990-09-01 - 1994-01-01 2498 cc 54 KW 73 HP 4 Cylinders Diesel CRD93
PEUGEOT J5 Pianale piatto/Telaio (280L)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
J5 Pianale piatto/Telaio (280L) 1981-09-01 - 1990-08-01 1796 cc 51 KW 69 HP 4 Cylinders Gasoline 169B (XM7T)
TOYOTA
TOYOTA HIACE III Furgone (_H5_, _H6_, _H7_, _H8_, _H9_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
HIACE III Furgone (_H5_, _H6_, _H7_, _H8_, _H9_) 1986-08-01 - 1989-08-01 2237 cc 69 KW 94 HP 4 Cylinders Gasoline 4Y
HIACE III Furgone (_H5_, _H6_, _H7_, _H8_, _H9_) 1987-08-01 - 1989-08-01 2237 cc 69 KW 94 HP 4 Cylinders Gasoline 4Y
Techinical Info

The DAF OE 2298832 control unit is a diesel engine control unit (ECU/EDC) used on DAF commercial vehicles, particularly on CF/XF applications. Manufactured by Delphi, within DAF it is identified as DMCI (DAF Multi Controlled Injection) and is intended for complete management of the engine and its delivery and protection strategies.

Technical specifications

  • Type: diesel engine management control unit (ECU/EDC).
  • Supplier: Delphi, DMCI family.
  • Typical associated engines: DAF MX13

DIPA can intervene to overhaul these components thanks to its experience and expertise.

Functions

  • Complete management of diesel injection and the requested torque, with limiters and protection strategies (temperature, smoke, rail pressure, turbocharging).
  • Control of the high-pressure fuel system and plausibility checking of the main sensors (rail pressure, fuel temperature, engine speed/position).
  • Air and boost management (logic on air pressure/flow and control of related actuators, according to vehicle configuration).
  • Coordination with the vehicle network and related modules (vehicle interfaces, start authorizations and parameterizations): many used-unit listings mention kits with interface modules and key, indicating that module alignment can be a critical point during replacement.
  • Diagnostics with fault storage and degraded modes (recovery) to protect the powertrain.

Model applications

  • DAF CF/XF

Common faults

  • The control unit does not communicate with the diagnostic tool
  • The engine shuts down when hot and sometimes restarts when cold
  • The engine does not start

Final conclusions

The DAF OE 2298832 is a diesel engine control unit produced by Delphi, known within DAF as DMCI (DAF Multi Controlled Injection), and is widely used on DAF CF/XF series vehicles.

DIPA has a wide range of spare parts dedicated to the Truck sector, construction vehicles and industrial equipment. It also offers reconditioned components with performance equivalent to new, enabling savings on replacements while contributing to environmental protection through the circular economy. If the spare part you need is not available, don’t worry: DIPA can recondition your part “on demand”, restoring full functionality and safety in a short time.
