Important Notice

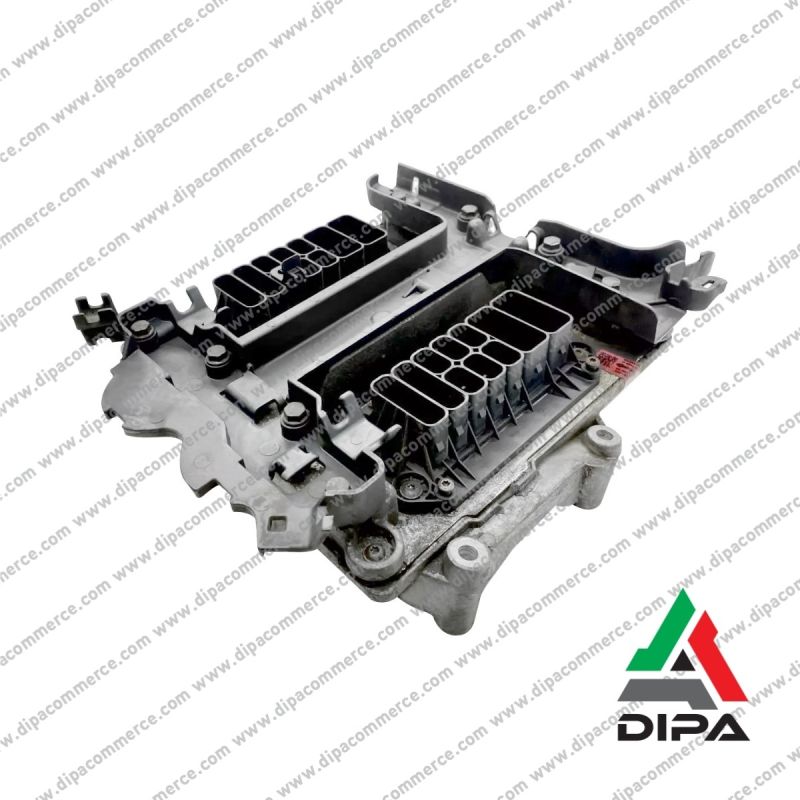

Engine ECU Ems S6 Scania P,G,R,T DC16

DiPa Code:
EDEMSS6006R
OEM Code:
350426
Brand:
DIPA SPORT
Condition:
Remanufactured
Engine Control Unit
To view availability and prices, login or register
Are you a private individual? Find out how we can help you
Typical Errors and Defects

Typical Defects:
The engine tends to stall during driving

Applications
ALFA ROMEO
ALFA ROMEO AR 6 Furgone (280_)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
AR 6 Furgone (280_) 1985-04-01 - 1989-12-01 1929 cc 51 KW 69 HP 4 Cylinders Diesel 160 D100
MERCEDES-BENZ
MERCEDES-BENZ VITO Autobus (W639)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
VALENTE Autobus (W639), VITO Autobus (W639) 2004-06-01 - 2008-07-01 3724 cc 170 KW 231 HP 6 Cylinders Gasoline M 112.976
OPEL
OPEL CORSA A Furgone/hatchback (S83)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
CORSA A Furgone/hatchback (S83) 1986-02-01 - 1990-07-01 1196 cc 44 KW 60 HP 4 Cylinders Gasoline 12 S
SCANIA
SCANIA G I
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
G I 2008-01-01 - 2019-05-01 15607 cc 353 KW 480 HP Cylinders
SCANIA R I
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
R I 2004-03-01 - 2019-05-01 15607 cc 368 KW 500 HP Cylinders
R I 2004-03-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2004-03-01 - 2019-05-01 15607 cc 456 KW 620 HP Cylinders
R I 2004-03-01 - 2019-05-01 15607 cc 411 KW 559 HP Cylinders
R I 2004-03-01 - 2019-05-01 15607 cc 455 KW 619 HP Cylinders
R I 2004-03-01 - 2019-05-01 15607 cc 426 KW 579 HP Cylinders
R I 2004-03-01 - 2019-05-01 15607 cc 426 KW 580 HP Cylinders
R I 2004-04-01 - 2019-05-01 15607 cc 368 KW 500 HP Cylinders
R I 2004-04-01 - 2019-05-01 15607 cc 426 KW 580 HP Cylinders
R I 2004-04-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2004-06-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2004-06-01 - 2019-05-01 15607 cc 368 KW 500 HP Cylinders
R I 2004-09-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2004-10-01 - 2019-05-01 15607 cc 456 KW 620 HP Cylinders
R I 2005-09-01 - 2019-05-01 15607 cc 456 KW 620 HP Cylinders
R I 2006-09-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2006-11-01 - 2019-05-01 15607 cc 456 KW 620 HP Cylinders
R I 2008-01-01 - 2019-05-01 15607 cc 368 KW 500 HP Cylinders
R I 2008-03-01 - 2019-05-01 15607 cc 456 KW 620 HP Cylinders
R I 2008-03-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2009-03-01 - 2019-05-01 15607 cc 368 KW 500 HP Cylinders
R I 2009-03-01 - 2019-05-01 15607 cc 456 KW 620 HP Cylinders
R I 2009-03-01 - 2019-05-01 15607 cc 412 KW 560 HP Cylinders
R I 2010-04-01 - 2019-05-01 16353 cc 537 KW 730 HP Cylinders
R I 2010-10-01 - 2019-05-01 16353 cc 537 KW 730 HP Cylinders
R I 2012-09-01 - 2019-05-01 16353 cc 382 KW 520 HP Cylinders
R I 2012-09-01 - 2019-05-01 16353 cc 382 KW 519 HP Cylinders
R I 2012-09-01 - 2019-05-01 16353 cc 427 KW 581 HP Cylinders
R I 2013-07-01 - 2019-05-01 16353 cc 382 KW 520 HP Cylinders
R I 2013-09-01 - 2019-05-01 16353 cc 426 KW 579 HP Cylinders
R I 2014-01-01 - 2019-05-01 16353 cc 426 KW 579 HP Cylinders
SCANIA T
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
T 2004-06-01 - 2019-05-01 15607 cc 368 KW 500 HP Cylinders
T 2004-06-01 - 2019-05-01 15607 cc 426 KW 579 HP Cylinders
SKODA
SKODA FABIA I Praktik (6Y5)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
FABIA I Praktik (6Y5) 2005-10-01 - 2007-12-01 1422 cc 51 KW 70 HP 3 Cylinders Diesel BNM
VW
VW CADDY II Cassone/Limousine spaziosa (9K9A)
Model Year of Production Displacement KW HP Cylinders Fuel Type Engine Code
CADDY II Cassone/Limousine spaziosa (9K9A), PANEL II Cassone/Limousine spaziosa (9K9A), VAN II Cassone/Limousine spaziosa (9K9A) 1995-11-01 - 2004-01-01 1896 cc 47 KW 64 HP 4 Cylinders Diesel 1Y
Techinical Info

The SCANIA control unit with OE code 350426 is an engine management control unit (EMS) used on Scania P, G, R and T series applications. It is the module that integrally governs combustion and engine torque: it acquires signals from the main sensors, processes injection and emission/torque limiting strategies, and controls the actuators involved in fueling, forced induction and auxiliary functions connected to the engine.

Technical specifications

  • Control unit type: Engine management (EMS)
  • Family: EMS S6 (architecture for engines with PDE-type injection according to Scania nomenclature)
  • Vehicle communication: CAN network with heavy-duty protocol (system based on SAE J1939 logic) and data exchange with other units (coordinator, instrumentation, gearbox, engine brake/retarder, etc.)

DIPA can intervene to overhaul these components thanks to its experience and expertise.

Functions

  • Management of injection quantity and timing based on load, engine speed, temperatures and protection limits
  • Torque control and limitations depending on gear, torque demand and safety conditions
  • Management of boost (air/boost pressure control logics and protections related to under/overpressure)
  • Starting, idle, stabilization and stall-prevention strategies
  • Coordination with vehicle systems via CAN (cruise control/vehicle speed, torque requests from other ECUs, PTO modes, etc.)
  • Engine protection functions (recovery, torque cut) when critical thresholds are exceeded
  • Storage/management of parameters and adaptations (depends on software version and vehicle configuration)

Applicable models

  • Scania P/G/R/T series

Common faults

  • The engine tends to stall while driving

Final conclusions

The SCANIA OE 350426 is an engine control unit of the EMS S6 family associated with DC16 engines.

DIPA has a wide range of spare parts dedicated to the world of Truck, construction vehicles and industrial equipment. Not only that: it has refurbished components with performance equivalent to new ones, which allow savings on replacements while contributing to environmental protection thanks to the circular economy. If the spare part you need is not available, don't worry: DIPA can overhaul your part "on demand", restoring full functionality and safety in a short time.
