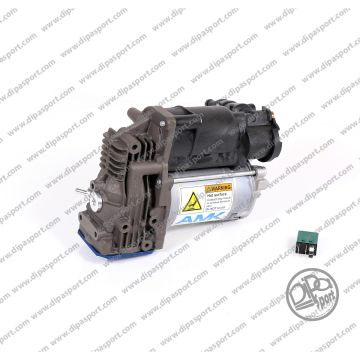

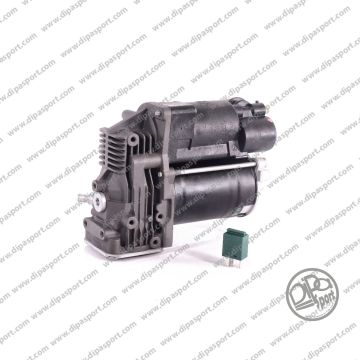

Air Compressor Revision Bmw X5 X6

DiPa Code:: SSP02872R
OEM Code:: 37206859714
Brand:: DIPA SPORT
Cod.Cross:
Condition:: Remanufactured

Suspension Compressor

To view availability and prices, login or register

Are you a private individual? Find out how we can help you

Warnings

WARNING: the compressor does not fail by itself.

It is therefore extremely important to understand the causes of its malfunction before replacing it with a new/reconditioned unit to avoid a repeat failure.

The general causes are:

The relay is not replaced and the compressor keeps running until it seizes. Always replace the relay.

Even the smallest hole in the air spring, in the height-control valves or in the system will cause the system to leak and the compressor to run more than necessary to restore pressure; the larger the hole, the faster the system will discharge. Therefore carefully check that there are no leaks of any kind.

The compressor draws ambient air through an intake hose, most often fitted with a filter. If this hose or filter are damaged the compressor can draw in debris, dust and water, resulting in internal piston and cylinder failure and corrosion. Check that the hose and filter are intact and dry inside.

Details

Complete with relay, solenoid valve and mounting bracket
The relay must be replaced together with the compressor

Applications

BMW

BMW X5 (E70)

Model	Year of Production	Displacement	KW	HP	Cylinders	Fuel Type	Engine Code
X5 (E70), X5 SAV (E70)	2006-10-01 - 2008-09-01	4799 cc	261 KW	355 HP	8 Cylinders	Gasoline	N62 B48 B
X5 (E70), X5 SAV (E70)	2006-10-01 - 2008-09-01	2996 cc	200 KW	272 HP	6 Cylinders	Gasoline	N52 B30 AF
X5 (E70), X5 SAV (E70)	2006-10-01 - 2008-09-01	2996 cc	200 KW	272 HP	6 Cylinders	Gasoline	N52 B30 BF
X5 (E70), X5 SAV (E70)	2006-10-01 - 2008-09-01	2996 cc	200 KW	272 HP	6 Cylinders	Gasoline	N52 B30 A
X5 (E70), X5 SAV (E70)	2006-12-01 - 2008-09-01	2993 cc	173 KW	235 HP	6 Cylinders	Diesel	M57 D30 (306D3)
X5 (E70), X5 SAV (E70)	2007-02-01 - 2008-09-01	2993 cc	155 KW	211 HP	6 Cylinders	Diesel	M57 D30 (306D3)
X5 (E70), X5 SAV (E70)	2007-10-01 - 2008-09-01	2993 cc	210 KW	286 HP	6 Cylinders	Diesel	M57 D30 (306D5)
X5 (E70), X5 SAV (E70)	2008-10-01 - 2010-03-01	2993 cc	173 KW	235 HP	6 Cylinders	Diesel	M57 D30 (306D3)
X5 (E70), X5 SAV (E70)	2008-10-01 - 2010-03-01	4799 cc	261 KW	355 HP	8 Cylinders	Gasoline	N62 B48 B
X5 (E70), X5 SAV (E70)	2008-10-01 - 2010-03-01	2996 cc	200 KW	272 HP	6 Cylinders	Gasoline	N52 B30 A
X5 (E70), X5 SAV (E70)	2008-10-01 - 2013-07-01	2993 cc	155 KW	211 HP	6 Cylinders	Diesel	M57 D30 (306D3)
X5 (E70), X5 SAV (E70)	2008-10-01 - 2013-07-01	2993 cc	155 KW	211 HP	6 Cylinders	Diesel	N57 D30 A
X5 (E70), X5 SAV (E70)	2008-10-01 - 2013-07-01	2993 cc	210 KW	286 HP	6 Cylinders	Diesel	M57 D30 (306D5)
X5 (E70), X5 SAV (E70)	2009-07-01 - 2013-07-01	4395 cc	408 KW	555 HP	8 Cylinders	Gasoline	S63 B44 A
X5 (E70), X5 SAV (E70)	2010-04-01 - 2013-07-01	4395 cc	300 KW	408 HP	8 Cylinders	Gasoline	N63 B44 A
X5 (E70), X5 SAV (E70)	2010-04-01 - 2013-07-01	2979 cc	225 KW	306 HP	6 Cylinders	Gasoline	N55 B30 A
X5 (E70), X5 SAV (E70)	2010-04-01 - 2013-07-01	2993 cc	180 KW	245 HP	6 Cylinders	Diesel	N57 D30 A
X5 (E70), X5 SAV (E70)	2010-09-01 - 2013-06-01	2993 cc	225 KW	306 HP	6 Cylinders	Diesel	N57 D30 B
X5 (E70), X5 SAV (E70)	2011-08-01 - 2013-06-01	2993 cc	280 KW	381 HP	6 Cylinders	Diesel	N57 D30 C
X5 (E70), X5 SAV (E70)	2012-01-01 - 2013-06-01	2979 cc	225 KW	306 HP	6 Cylinders	Gasoline	N55 B30 A
X5 (E70), X5 SAV (E70)	2012-02-01 - 2013-06-01	2979 cc	235 KW	320 HP	6 Cylinders	Gasoline	N55 B30 A

BMW X6 (E71, E72)

Model	Year of Production	Displacement	KW	HP	Cylinders	Fuel Type	Engine Code
X6 (E71, E72), X6 SAC (E71, E72)	2007-06-01 - 2010-03-01	2979 cc	240 KW	326 HP	6 Cylinders	Gasoline	N54 B30 A
X6 (E71, E72), X6 SAC (E71, E72)	2007-10-01 - 2014-06-01	4395 cc	330 KW	449 HP	8 Cylinders	Gasoline	N63 B44 A
X6 (E71, E72), X6 SAC (E71, E72)	2008-01-01 - 2010-03-01	2993 cc	210 KW	286 HP	6 Cylinders	Diesel	M57 D30 (306D5)
X6 (E71, E72), X6 SAC (E71, E72)	2008-01-01 - 2014-06-01	2979 cc	224 KW	305 HP	6 Cylinders	Gasoline	N55 B30 A
X6 (E71, E72), X6 SAC (E71, E72)	2008-01-01 - 2014-06-01	2979 cc	224 KW	305 HP	6 Cylinders	Gasoline	N54 B30 A
X6 (E71, E72), X6 SAC (E71, E72)	2008-01-01 - 2014-07-01	2979 cc	225 KW	306 HP	6 Cylinders	Gasoline	N55 B30 A
X6 (E71, E72), X6 SAC (E71, E72)	2008-01-01 - 2014-07-01	2979 cc	225 KW	306 HP	6 Cylinders	Gasoline	N54 B30 A
X6 (E71, E72), X6 SAC (E71, E72)	2008-04-01 - 2010-03-01	2993 cc	173 KW	235 HP	6 Cylinders	Diesel	M57 D30 (306D3)
X6 (E71, E72), X6 SAC (E71, E72)	2008-07-01 - 2014-07-01	4395 cc	300 KW	408 HP	8 Cylinders	Gasoline	N63 B44 A
X6 (E71, E72), X6 SAC (E71, E72)	2009-01-01 - 2011-10-01	4395 cc	357 KW	485 HP	8 Cylinders	Benzina/Elettrico	N63 B44 A
X6 (E71, E72), X6 SAC (E71, E72)	2009-07-01 - 2014-06-01	2993 cc	225 KW	306 HP	6 Cylinders	Diesel	N57 D30 B
X6 (E71, E72), X6 SAC (E71, E72)	2009-07-01 - 2014-07-01	4395 cc	408 KW	555 HP	8 Cylinders	Gasoline	S63 B44 A
X6 (E71, E72), X6 SAC (E71, E72)	2010-04-01 - 2014-07-01	2993 cc	155 KW	211 HP	6 Cylinders	Diesel	N57 D30 A
X6 (E71, E72), X6 SAC (E71, E72)	2010-04-01 - 2014-07-01	2993 cc	180 KW	245 HP	6 Cylinders	Diesel	N57 D30 A
X6 (E71, E72), X6 SAC (E71, E72)	2011-08-01 - 2014-06-01	2993 cc	280 KW	381 HP	6 Cylinders	Diesel	N57 D30 C
X6 (E71, E72), X6 SAC (E71, E72)	2012-08-01 - 2014-06-01	2979 cc	235 KW	320 HP	6 Cylinders	Gasoline	N55 B30 A
